Quick Release Mixers

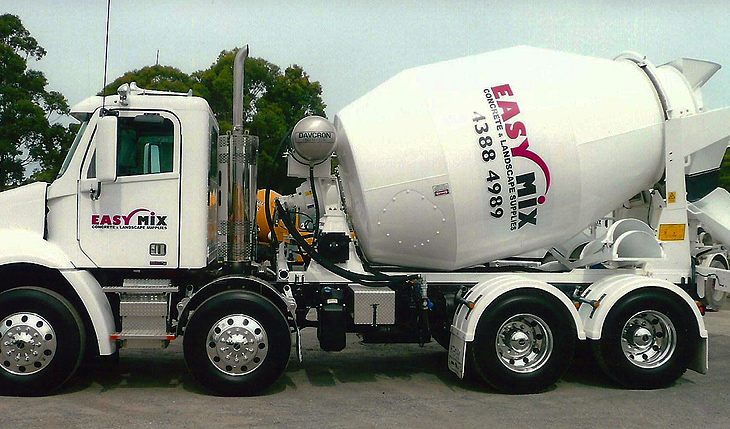

The Quick Release Transit Mixer is ideal for the company that needs the versatility of a concrete mixer and a tipper. Perfect for regional Australia where the demand for a mixer and tip truck can be covered by the same unit.

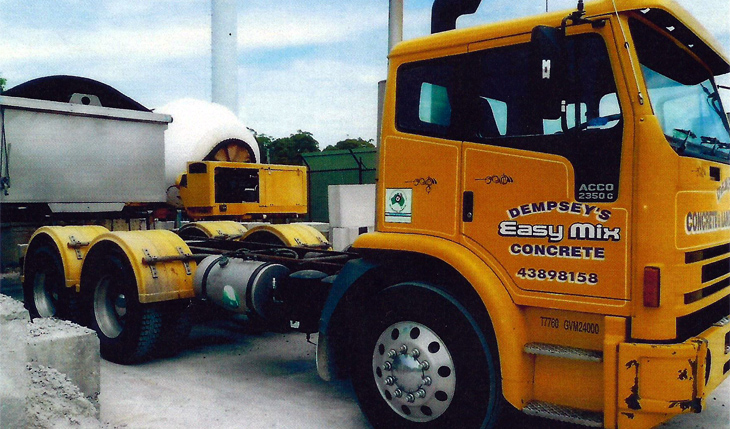

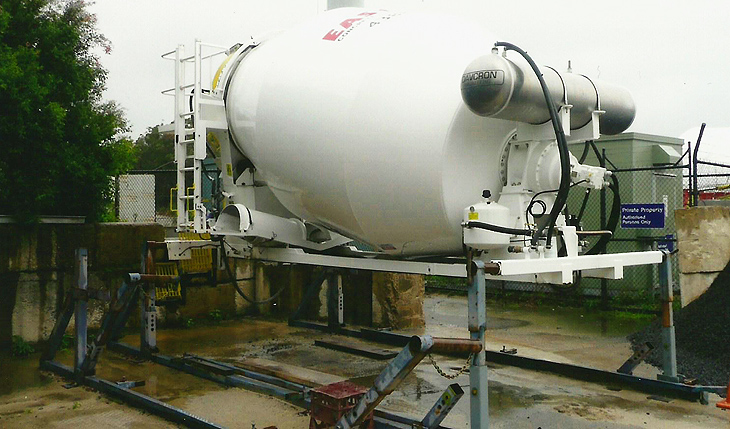

We can offer a variety of different sized mixers. An extremely simplistic clip on and clip off system using two extended stands, one for each unit (mixer and/or tipper), makes the transfer from the truck chassis almost seamless and the change-over of units being able to be completed in a matter of minutes.
The monetary opportunity doubles by being able to offer completely different services from the one chassis, opening up a variety of business opportunities that may not have been available previously.
Find out more about how Davcron can improve your bottom line with a Quick Release Transit Mixer. Contact us today!
| Dimensions | 2.2m3 | 2.6m3 | 3.0m3 | 3.5m3 | 4.0m3 |
|---|---|---|---|---|---|
| Mixing Capacity to AS1379 - 2007 | 2.2m3 | 2.6m3 | 3.0m3 | 3.5m3 | 4.0m3 |
| Height to Feed Chute (A) | 1,655mm | 1,730mm | 1,830mm | 1,910mm | 1,920mm |
| Height Overall (B) | 1,775mm | 1,840mm | 1,910mm | 1,930mm | 1,940mm |
| Height to Swivel Chute (C) | 710mm | 785mm | 860mm | 935mm | |
| Centre of Gravity – estimated (F) | 1,585mm * | 1,740mm * | 1,962mm * | 2,010mm * | |
| Height to Centre of Gravity (approx) (G) | 605mm | 603mm | 601mm | ||
| Nominal Length on Truck Chassis (D)+ | 3,500mm | 3,800mm | 4,200mm | 3,400mm | 5,830mm |
| Nominal Length Overall (E) | 3,955mm | 4,240mm | 4,550mm | 3,750mm | |
| Nominal Width Water Tank (H) | 400mm | 400mm | 400mm | 400mm | 400mm |
Barrel Specification:
- Dished End 8mm Intensified Wear Resistant High Tensile
- Back Cone 4mm Intensified Wear Resistant High Tensile
- Nose Cone 4mm Intensified Wear Resistant High Tensile
- Centre Band 4mm Intensified Wear Resistant High Tensile
- Mix Blades 4mm Wear Resistant High Tensile
- Discharge Blades 3 & 4mm Wear Resistant High Tensile
Width:
- Width over Mudguards 2,130 - 2,230mm
- Outside Chassis Width 840 mm
- NStandard Chassis Rails 75x75x4mm RHS
* Operating weight and centre of gravity may vary - average approximate only. Specifications are references only - design or material improvements are incorporated automatically.
+ Deduct 400mm from A should you relocate water tank to high mount position above drum head drive gearbox.
